Actuated Valves, Pvc/pp

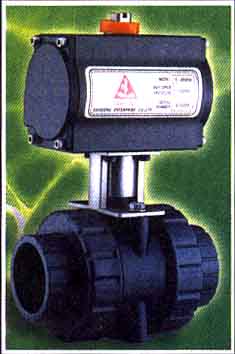

Actuated Valves, PVC/PP includes pneumatic or electrical actuators. These actuators with 90 degree - quarter turn rotation - and bi-directional pinion travel feature, stops to allow an adjustment of +5 degree of valve rotation. Electrical actuators are available for AC 110 V/AC 220 V/DC 24 V supply. Valves are made of high-grade thermoplastics with many superior features like blow out proof design, easy installation, and maintenance. The ball valves are available in sizes from 1/2" to 4" with choice of end connections like socket (ANSI, DIN, JIS, CNS), threaded (PT, NPT, BSPF) and butterfly valves from 2" to 12" flanged. Working pressure is 150 PSI. Hand operated valves are also available. After introducing hand operated PVC/PP true union ball valves, Trisha Engineers now offers PVC/PP valves with pneumatic or electrical actuators.
